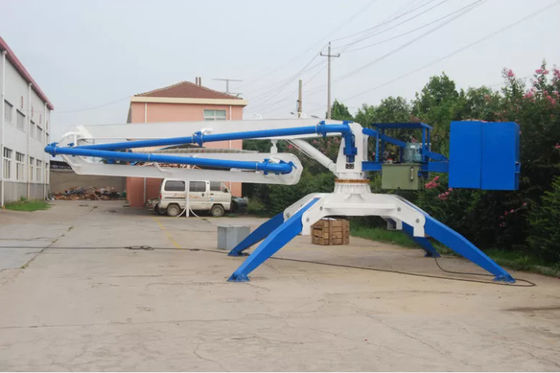

3 Sections Folding Spider Concrete Placing Boom 5.5Kw Hydraulic System Pressure 22Mpa
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEDA / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HG21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Max Horizontal Reach: | 21m | Folding Type: | 3-sections |
|---|---|---|---|
| Product Category: | Spider Concrete Placing Boom | Power Type: | Electric |
| Mode Of Operation: | Cable Remote Control | Power Output: | 5.5Kw |
| Stationary Height: | 3m | Hydraulic System Pressure: | 22Mpa |
| Highlight: | Spider Concrete Placing Boom 5.5Kw,Spider Concrete Placing Boom 22Mpa |
||
Product Description
5.5Kw Power Output Hydraulic System Pressure 22Mpa HG21 Spider 3-sections Folding Concrete Placing Boom for Your Construction Needs
Product Description:
The use of concrete placing boom in construction is extremely versatile. It is mainly utilized in conveying, dispersing, spreading and pouring concrete into molds. This includes:
- Construction Sites: In construction sites, concrete placing boom aids in uniformly spreading concrete to designated areas. This ensures that the concrete has the required thickness and flatness.
- Bridge Construction: Concrete placing boom is critical in bridge construction. It enables the efficient and swift transportation of concrete to different parts of the bridge, ensuring stability throughout the structure.
- Road Construction: Concrete placing boom is also incredibly useful in road construction. It accelerates the laying of concrete on the road surface, increasing both the speed and quality of construction.
Features:
The HG series mobile concrete placing boom is equipped with an advanced full hydraulic drive system that allows for 360° slewing. The balance valve and solenoid directional control valve are imported from Italy's Oil control and Germany's Rexroth, ensuring high performance and reliability.
In addition to its hydraulic system, the HG series also boasts a reliable electrical system. The main components of the concrete placing boom are imported from world-renowned companies such as France's Schneider. This ensures top-quality performance and long-lasting durability.
To further improve user experience and optimize functionality, the HG series mobile concrete placing boom is equipped with both cable and wired remote control capabilities. This allows for increased flexibility and precision during use.
The hydraulic system of HG series mobile concrete placing boom can realize 360° slewing, the balance valve and solenoid directional control valve are relatively imported from Italian Oil control and Germany Rexroth.
Main components of HG series concrete placing boom are imported from world famous companies such as France Schneider.
The HG series mobile concrete placing boom is equipped with both cable and wired remote control capabilities for increased flexibility and precision during use.
Technical Parameters:
| Model | HG21 | |
| Boom Section | 3 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | |
| Radius of placing boom (m) | 21 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | 3 | |
| Hydraulic foldable arm sections | 1st section | 7.95m |
| 2nd section | 6.95m | |
| 3rd section | 6.1m | |
| 4th section | N/A | |
| Boom articulation (°) | 1st section | －1～87 |
| 2nd section | 0°～176° | |
| 3rd section | 0°～180° | |
| 4th section | N/A | |
| Slewing range (°) | 360 | |
| Power of motor (kW) | 5.5 | |
| Pressure of hydraulic system (MPa) | 22 | |
| Type of hydraulic oil | ESSO NUTO H46 or H32 | |
| Interval of climbing frame (m) | Climbing | N/A |
| Placing concrete | N/A | |
| Resting | N/A | |
| Mode of operation | 1. cable remote control | |
| 2. radio remote control | ||
| Power | 380V/50Hz | |
| Weight | Without counterweight | 5020kgs |
| Countweight | 2x1600kgs | |
| Working temperature | ﹣20～48℃ | |
Applications:
The Concrete Placing Boom product is made in China and has obtained ISO9001:2015 certification, ensuring its quality and safety. The minimum order quantity is 1 unit, and the price is negotiable. The packaging details include 1 unit in 1*40'HQ, and the delivery time is 45 working days. Payment terms accepted include T/T and L/C. Supply ability is 120 units per year, making it readily available for customers.
The mode of operation for KEDA / POTENCY Concrete Placing Boom HG21 is Cable Remote Control, making it easy to operate and control. The power output is 5.5Kw, and it operates on electricity, making it an eco-friendly Concrete Boom Placer.
This Concrete Placing Boom product is perfect for various occasions and scenarios. It is ideal for construction projects that require a long horizontal reach, such as high-rise buildings and bridges. It is also suitable for projects in confined spaces where traditional concrete pouring methods are not feasible.
KEDA / POTENCY Concrete Placing Boom HG21 is a practical and efficient product that simplifies the concrete placement process. Its reliability and efficiency make it an excellent investment for construction companies.

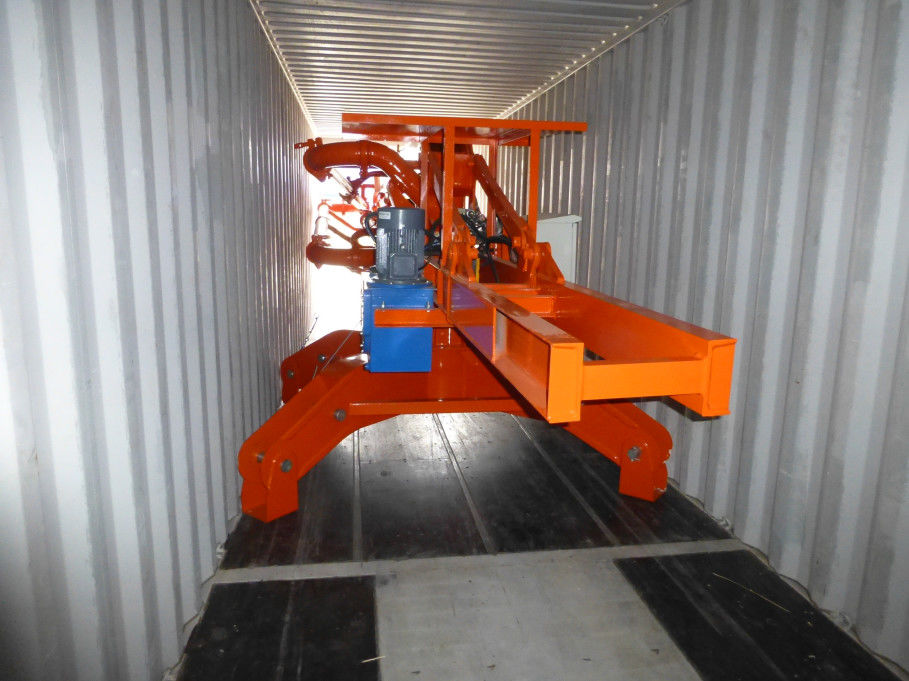

Packing and Shipping:
Product Packaging:
- The concrete placing boom is securely packaged in a wooden crate to ensure safe transport
- The crate is labeled with the product name, dimensions, and weight for easy identification
Shipping:
- We offer worldwide shipping using reliable and trusted carriers
- Shipping costs will vary depending on the destination and weight of the package
- Upon shipment, customers will receive a tracking number to monitor the status of their delivery
- Delivery times may vary depending on the destination and shipping method selected
