31.7m Max. Reach 28Mpa Hydraulic Concrete Placing Boom with 360 Degree Slewing Angle
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HG32Bb |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 2*40'HQ |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Type Of Hydraulic Oil: | ESSO NUTO H46 Or H32 | Max Horizontal Reach: | 31.7m |
|---|---|---|---|
| Pressure Of Hydraulic System: | 28Mpa | Stationary Height: | 22.9m |
| Application: | Concrete Placement | Power Of Motor: | 15Kw |
| Slewing Angle: | 360° | Mode Of Operation: | Cable & Radio Remote Control |
| Highlight: | 31.7m Concrete Placing Boom,28Mpa Concrete Placing Boom,Hydraulic Concrete Placing Boom |
||
Product Description
28Mpa Pressure Hydraulic Concrete Placing Boom The Perfect Choice for Concrete Placement HG32
Product Description:
Features:
-

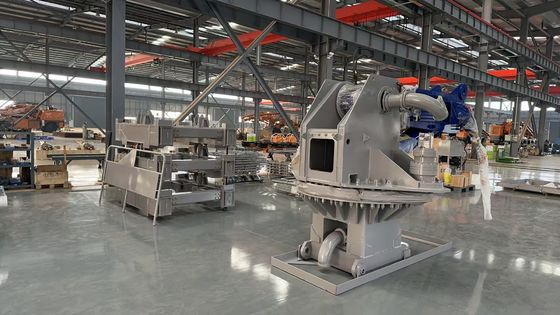

Hydraulic Operation:
-
Fully hydraulic-driven system for smooth and precise control.
-
Capable of 360-degree slewing, allowing full coverage of the work area110.
-
-

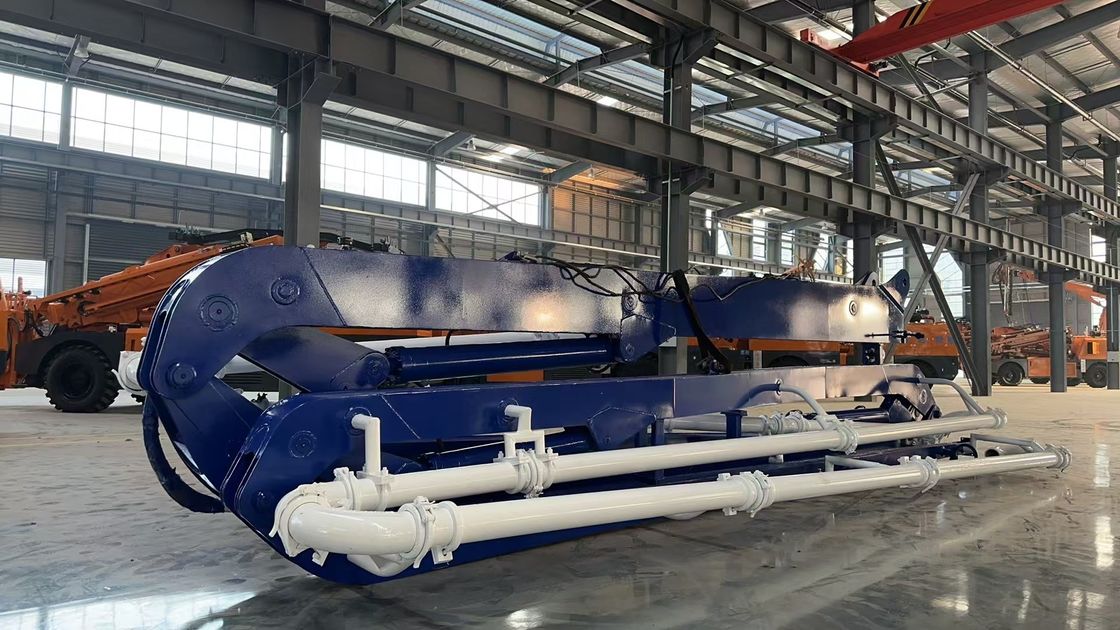

Three Hydraulic Foldable Arms:
-
1st Section: 14.5 meters
-
2nd Section: 9.2 meters
-
3rd Section: 8.0 meters
-
Articulation angles:
-
1st section: -4.2° to +82.5°
-
2nd and 3rd sections: 0° to 180°1.
-
-
-
Remote Control Operation:
-
Equipped with both radio remote control and cable remote control for easy and safe operation110.
-
-
High-Quality Construction:
-
Delivery pipe dimensions: Φ133×4 mm (outside diameter × thickness).
-
Delivery hose dimensions: 5″×3000 mm (inside diameter × length).
-
Designed for durability and minimal vibration during operation1.
-
-
Technical Parameters:
| Parameter | Value |
|---|---|
| Radius of placing boom | 31.7 meters |
| Stationary height | 22.9 meters |
| Slewing range | 360 degrees |
| Power supply | 380V/50Hz |
| Weight | Self-weight supported |
| Climbing frame interval | 3.0–4.2 meters |
| Placing concrete interval | 6.0–8.4 meters |
Applications:
Model: HG32Bb
The HG32's modular design allows for easy transportation and quick assembly on-site. This feature is particularly beneficial for projects with limited space or those requiring frequent relocation of equipment
Customization:
Product Customization Services for the Climbing Concrete Placing Boom
Brand Name: POTENTIAL / POTENCY
Model Number: HG32
Place of Origin: CHINA
Certification: ISO9001:2015
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 Unit in 2*40'HQ
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 120 units per year
Power of Motor: 15Kw
Slewing Angle: 360°
Max Horizontal Reach: 31.7m
Pressure of Hydraulic System: 28Mpa
Type of Hydraulic Oil: ESSO NUTO H46 Or H32
FAQ:
Q: What is the brand name of the Concrete Placing Boom?
A: The brand name of the Concrete Placing Boom is POTENTIAL / POTENCY.
Q: What is the model number of the Concrete Placing Boom?
A: The model number of the Concrete Placing Boom is HG32.
Q: Where is the Concrete Placing Boom manufactured?
A: The Concrete Placing Boom is manufactured in CHINA.
Q: What certification does the Concrete Placing Boom have?
A: The Concrete Placing Boom is certified with ISO9001:2015.
Q: What is the minimum order quantity for the Concrete Placing Boom?
A: The minimum order quantity for the Concrete Placing Boom is 1 unit.
